Phase 4: Control the robot from Python

In this phase you write and run a Python script on your personal computer that connects to the robot and executes the static pick-and-place sequence from the previous phase. This proves your connection, environment, and named positions work end to end before you add vision feedback.

Why a script before a module

Everything you did before happened by clicking test cards on the CONTROL tab. That is a fine way to verify hardware, but it does not scale: you cannot loop, branch on a sensor reading, or retry a failed grasp from a button. A program script gives you those things, plus fast iteration, a local debugger, and the ability to sprinkle in print statements wherever you need visibility into what the robot is doing.

In the next phase, you package this same logic as a module. For now, a script you run from your own terminal, that you can stop, edit, and rerun in seconds, is the faster path to a working pick-and-place loop.

Every control you clicked in the UI maps directly onto an SDK method: the arm card’s joint sliders become Arm methods, Grab and Open on the gripper card become gripper.grab() and gripper.open(), and setting a switch to position 2 becomes switch.set_position(2). Once you can call those methods from code, you can compose them into logic no UI card lets you express by clicking.

Get the companion project

The workshop’s companion repository, viam-devrel/pick-and-place, has a scripts/ project with a starter script already set up for this phase. Clone or download the repository, then work from the scripts/ directory:

git clone https://github.com/viam-devrel/pick-and-place.git
cd pick-and-place/scripts

uv reads the project’s pyproject.toml and .python-version and resolves viam-sdk for you automatically. If you are not using uv, pip works as a fallback once you have installed the project’s dependencies yourself.

Connect to your robot

Open starter-script.py and find the connect() function. It mirrors the boilerplate the Viam app generates for you on the machine’s CONNECT tab, under Python SDK:

MACHINE_ADDRESS = "<paste from Connect tab>"
API_KEY = "<paste from Connect tab>"
API_KEY_ID = "<paste from Connect tab>"


async def connect() -> RobotClient:
    opts = RobotClient.Options.with_api_key(
        api_key=API_KEY,
        api_key_id=API_KEY_ID,
    )
    return await RobotClient.at_address(MACHINE_ADDRESS, opts)

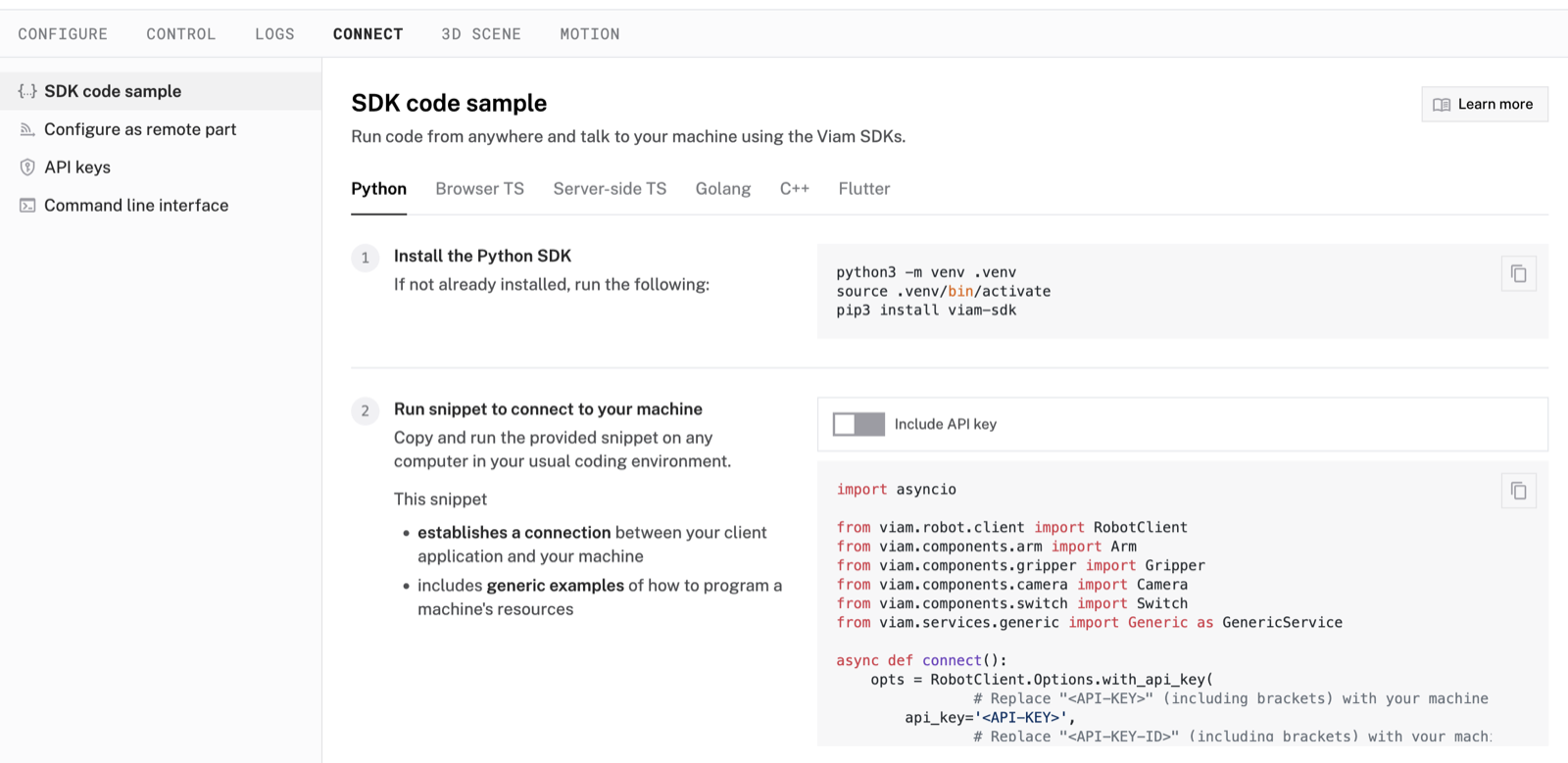

Open the CONNECT tab on your machine’s page in the Viam app, select Python SDK, toggle Include API key, and copy the three values it shows you: the machine address and an API key and key ID pair. Paste them into MACHINE_ADDRESS, API_KEY, and API_KEY_ID at the top of the script. This is the same connection code every Viam Python script starts with.

The machine address, also known as the “remote address” or fully-qualified domain name (FQDN), can also be found in the dropdown from the Online indicator. The API key and ID can also be found and created from the API keys section of the CONNECT tab.

Get typed resource handles

After the connection opens, the script builds typed handles for each resource you drive in this phase:

gripper = Gripper.from_robot(machine, "gripper-1")

home = Switch.from_robot(machine, "home-pose")
approach = Switch.from_robot(machine, "approach-pose")
grasp = Switch.from_robot(machine, "grasp-pose")
travel = Switch.from_robot(machine, "travel-pose")
place_pose = Switch.from_robot(machine, "place-pose")

from_robot returns a typed client for each resource: a Python object whose methods mirror that resource’s API. gripper.grab() and gripper.open() are the same actions as the gripper card’s Grab and Open buttons, and every call travels over the connection to viam-server, which routes it to the right resource. You are not driving the hardware directly; you are calling the same API the CONTROL tab calls, from code.

This code drives only the gripper and these pose switches. The script also keeps motion and vision handles commented out just below them, marked # Used in Phase 5; leave them commented until you add the vision service in the next phase.

Run the script

You run the script twice: first to confirm the connection without moving anything, then again to drive the arm.

First run: confirm the connection

Run the script with uv run starter-script.py (or python3 starter-script.py if you’re not using uv). As shipped, the static sequence is commented out, so this first run only opens the connection and prints every resource on the machine. Nothing moves.

print(machine.resource_names)

Second run: drive the arm

With the connection and resource names confirmed, uncomment the static sequence block in the starter script (the lines under TODO 4). This is the same sequence you tested by hand from the CONTROL tab at the end of Phase 3, now expressed as code instead of button clicks. On a switch, set_position(2) executes the pose it has saved:

await home.set_position(2)
await approach.set_position(2)
await gripper.open()
await grasp.set_position(2)
await gripper.grab()
await asyncio.sleep(0.3)  # finger gripper settle
await travel.set_position(2)
await place_pose.set_position(2)
await gripper.open()
await home.set_position(2)

The short sleep after gripper.grab() gives the two-finger gripper time to settle its grip on the block before the arm starts moving again; without it, the arm can begin the travel move before the fingers have finished closing.

Run the script again. This time it prints the resource list, then drives the arm through the full sequence.

Debugging guide

Most problems fall into one of a few categories:

• ResourceNotFoundError: vision-segment (or a similar not-found error for the vision service) means you uncommented the vision handle before configuring the vision service. That service is not added until Phase 5, so leave the vision = VisionClient.from_robot(...) line commented (it is marked # Used in Phase 5 in the starter script) until then, and rerun.
• Connection failures. If connect() raises an error or hangs, double-check the MACHINE_ADDRESS, API_KEY, and API_KEY_ID values against the CONNECT tab. A stale or mistyped API key produces an authentication error immediately; a wrong address usually times out instead. Also confirm the machine shows the green Live indicator in the Viam app. A machine that is not live cannot accept a connection no matter how correct your credentials are.
• Resource-name mismatches. If Gripper.from_robot(machine, "gripper-1") or a similar call raises a not-found error, the name in your script does not match the name on the CONFIGURE tab. Names are exact strings, not approximations, so gripper-1 and gripper_1 are different resources as far as the SDK is concerned. Open resource_names from the connection checkpoint above and compare it character for character against the names your script uses.
• A switch does nothing on set_position(2). This means the pose was never saved. Go back to the CONTROL tab, jog the arm to the correct pose, and set that switch to update config (position 1) to save it, as you did in Phase 3, then rerun the script.

With resource_names printing everything you expect and the static sequence running end to end from your own code, you have working proof that your connection, your named resources, and your saved poses all hold up under real code. You are ready to integrate perception in Phase 5.
